D-AVSE-DF20-V1525: Abbott Advisor VL Sensor Enabled Bi-Directional Circular Mapping Catheter 8F x 117cm, 20 Electrodes, D-F Curve

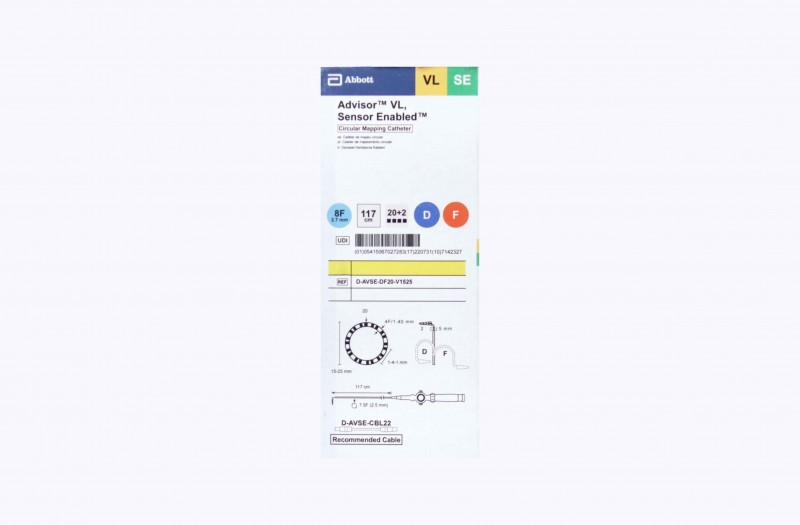

Photos are for illustration purposes only and may not depict the exact item.
Sign in to add this product to your favorites!
| Price: | $1,069.00 per box of 1 |
|---|---|
| Quantity: | |
| In Stock: | 1 box of 1 |
| Status: | expired |
| Express: | Need it tomorrow? Order in next 12 hours 20 minutes and choose overnight shipping at checkout. |
The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in date item only.
Related Items
QUICK VIEW
| D-AVSE-CBL22-R $50.00 $25.00 per box of 1 Abbott SJM 22-Pin Sensor Enabled Electrophsyiology Catheter Cable, 1.5m (REPROCESSED) Expired Units in stock: 35 box of 1 | Order Qty |
QUICK VIEW
| D-AVSE-DF10-V1525 - Size: 8.0F $1,069.00 per box of 1 Abbott Advisor VL Sensor Enabled Bi-Directional Circular Mapping Catheter 8F x 117cm, 10 Electrodes, D-F Curve Expired Units in stock: 4 box of 1 | Order Qty |
QUICK VIEW
| D-AVSE-DF10-F20 - Size: 8.0F $499.00 $199.60 per box of 1 Abbott Advisor FL Sensor Enabled Bi-Directional Circular Mapping Catheter 8F x 105cm, 20mm Loop, 10 Electrodes, D-F Curve Expired Units in stock: 26 box of 1 | Order Qty |
Additional Details
Abbott SJM St. Jude Medical Advisor VL Circular Mapping Catheters
Abbott SJM Advisor VL Sensor Enabled 8F Bi-Directional Circular Mapping Catheter, 20 Electrodes
Product Code: D-AVSE-DF20-V1525
- Curve: DF
- Number of Loop Electrodes: 20
- Electrode Spacing: 1-4-1mm
- PV Range: 15-25mm
- Useable Length: 117cm
- Required Catheter Connecting Cable (NOT INCLUDED): D-AVSE-CBL-22
Features
- 8F Circular Mapping Catheter
- Bi-directional handle with asymmetric D/F curve
- Torque response and planarity for catheter control
- Consistent 180° deflection for ease of loop placement
- Two additional shaft electrodes to aid catheter visualization
- Push/pull handle with uni-directional D curve
- Inactive tip and 1mm band electrodes
- 4F loop on 7.5F shaft compatible with 8F introducer
- Integrates with EnSite PrecisionTM cardiac mapping system and MediGuide technology
AccessGUDID Info
- FDA Product Code: DRF
- FDA Product Code Name: CATHETER, ELECTRODE RECORDING, OR PROBE, ELECTRODE RECORDING
- GMDN Term Code: 46355
- GMDN Term Name: Cardiac mapping catheter, percutaneous, single-use
- GMDN Term Description: A sterile, steerable, flexible tube containing multiple electrodes that is introduced percutaneously into the heart chambers in order to transmit electrical impulses for electrophysiological diagnostic examinations, e.g., intracardiac sensing, endocardial recording, stimulation, temporary pacing for evaluation of cardiac arrhythmias, cardioversion (CV) of electrical arrhythmias or electrophysiology (EP) mapping of cardiac structures. It is typically made of plastic with embedded electrodes often of platinum (Pt), iridium, or a composite. This is a single-use device.
