IN-DATE

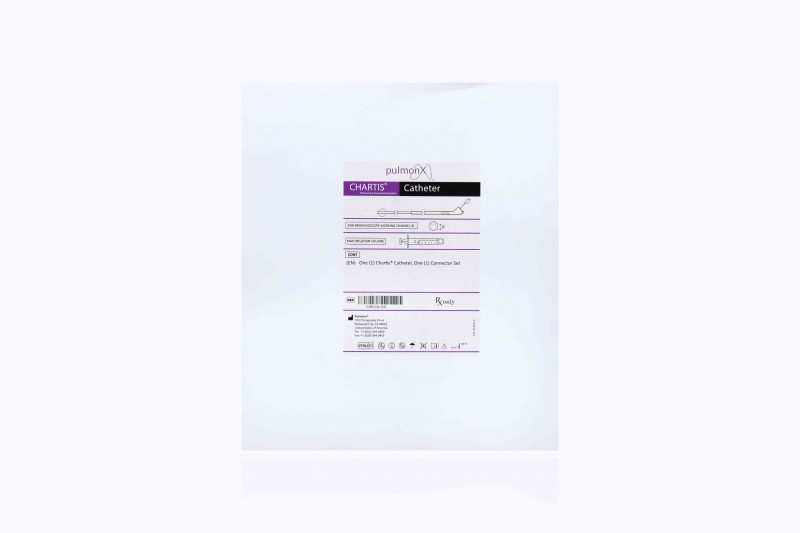

CHR-CA-12.0: PulmonX Chartis Catheter 5mm-12mm 72cm
Sign in to add this product to your favorites!
| Price: | $1,099.00 per box of 1 |
|---|---|
| In Stock: | 0 box of 1 |
| Expiration: | In-Date |
We currently do not have this item in stock, but we can email you as soon as it is available.
Related Items
QUICK VIEW
| SVS-V6-00 $2,099.00 per box of 1 Olympus Spiration Valve In Cartridge One-Way Bronchial Valve, Preloaded 6mm Exp: 03-2027 Units in stock: 3 box of 1 | Order Qty |
QUICK VIEW
| SVS-C26N-06 $915.00 per box of 1 Olympus Spiration Deployment Catheter & Loader Valve System, 105cm Exp: 10-2027 Units in stock: 4 box of 1 | Order Qty |
QUICK VIEW
| SVS-VSK-06 $149.00 per box of 1 Olympus Spiration Airway Sizing Kit Exp: 11-2027 Units in stock: 1 box of 1 | Order Qty |
Additional Details
PulmonX Chartis Catheter CHR-CA-12.0
The Chartis Catheter is a single use, sterile, disposable device designed to be inserted into a 2.8mm working channel of a standard video bronchoscope during a diagnostic bronchoscopy procedure. The Chartis Catheter is a hollow catheter shaft made of medical-grade PEBAX. The Chartis Catheter is 169 cm in length with a working length of 72 cm and a 2.7 mm outer diameter. The distal end of the catheter employs an inflatable balloon made from a compliant elastomeric material. The catheter has two lumens: the main lumen allows air flow from the isolated lung compartment to the Console, and the second smaller lumen allows balloon inflation. The proximal end of the catheter has two ports, a balloon inflation port to inflate the distal balloon, and an obturator port with a luer fitting for connection to the Chartis Console via the Connector Set. A custom obturator inserted into the main lumen of the catheter is used for both pushability and to clear mucus that may obstruct the lumen during catheter manipulation in the airways. The only portion of the device that comes into bodily contact is the distal tip of the catheter, which is made from medical grade PEBAX (shaft) and a compliant elastomeric material (balloon). No medicinal substances are eluted from the catheter
AccessGUDID Info
- FDA Product Code: CBI
- FDA Product Code Name: Tube, Tracheal/Bronchial, Differential Ventilation (W/Wo Connector)
- GMDN Term Code: 17827
- GMDN Term Name: Bronchial balloon catheter
- GMDN Term Description: A sterile flexible tube designed with a balloon at or near the distal tip that may be introduced directly (usually under fluoroscopic guidance) or through a bronchoscope so that its distal tip reaches the bronchi, permitting the inflation of the balloon after introduction. The device is typically used to treat benign stenosis and strictures of the airway and/or to control pulmonary bleeding (i.e., hemoptysis). This is a single-use device.
Manufacturer
PulmonX is a medical device company focused on innovative solutions for the treatment of chronic obstructive pulmonary disease (COPD). Their flagship product, the Zephyr Endobronchial Valve, is designed to treat severe emphysema by improving lung function through bronchoscopic procedures. PulmonX’s solutions aim to enhance patient quality of life and lung function by offering minimally invasive alternatives to traditional surgical options for individuals with chronic lung diseases.
